In the pharmaceutical industry, maintaining sterile manufacturing conditions is critical for ensuring product quality, regulatory compliance, and patient safety. One of the most important utility systems used in sterile manufacturing facilities is the Pure Steam Generator (PSG).
Pure steam is widely used for sterilization processes, Sterilization-In-Place (SIP) systems, autoclaves, bioreactors, fermenters, tanks, pipelines, and pharmaceutical equipment. Unlike conventional plant steam, pure steam is free from contaminants, chemicals, corrosion products, and impurities that could compromise pharmaceutical production.
This guide explains everything you need to know about Pure Steam Generators, including their working principle, components, applications, regulatory requirements, and selection criteria.
What is a Pure Steam Generator?
A Pure Steam Generator (PSG) is a pharmaceutical utility system designed to produce high-purity steam from purified water or Water for Injection (WFI).
The generated steam is free from:
- Pyrogens
- Endotoxins
- Non-volatile impurities
- Corrosion particles
- Chemical contaminants
Pure steam is used wherever direct contact between steam and pharmaceutical equipment or product-contact surfaces occurs.
The primary purpose of a PSG is to ensure safe and contamination-free sterilization throughout pharmaceutical manufacturing facilities.
What is Pure Steam?
Pure steam is steam generated from pharmaceutical-grade water under controlled conditions.
Unlike industrial plant steam, pure steam:
✅ Contains no added boiler chemicals
✅ Is free from contaminants
✅ Meets pharmaceutical quality requirements
✅ Is suitable for direct sterilization applications
Pure steam is considered a critical utility in pharmaceutical manufacturing because it comes into direct contact with product-contact equipment surfaces.
Why is Pure Steam Important in Pharmaceutical Manufacturing?
Sterility is essential for products such as:
- Injectable medicines
- Vaccines
- Biological products
- Ophthalmic solutions
- Sterile pharmaceutical products
Any contamination during manufacturing can lead to product failure and regulatory issues.
Pure steam ensures:
- Effective sterilization
- Product safety
- Regulatory compliance
- Reduced contamination risk
- Consistent manufacturing quality
For this reason, almost every modern sterile pharmaceutical facility relies on Pure Steam Generators.
Difference Between Plant Steam and Pure Steam
| Feature | Plant Steam | Pure Steam |
|---|---|---|
| Water Source | Boiler Feed Water | Purified Water / WFI |
| Chemical Additives | Present | Absent |
| Pharmaceutical Use | Not Suitable | Suitable |
| Sterility Level | Lower | High |
| Product Contact | Not Allowed | Allowed |
| GMP Compliance | Limited | Required |
Plant steam is primarily used for heating purposes, while pure steam is specifically designed for pharmaceutical sterilization processes.

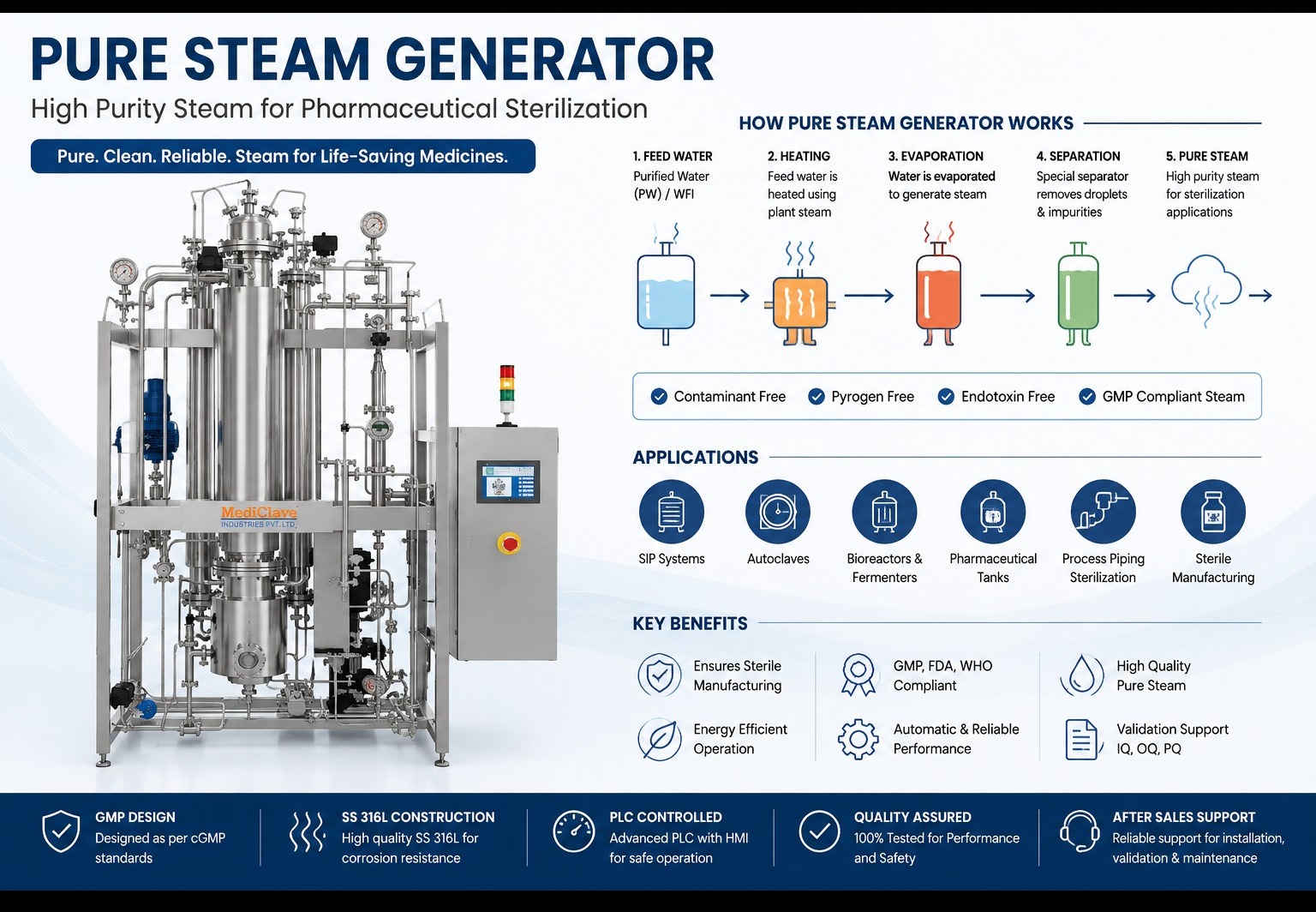

How Does a Pure Steam Generator Work?
A Pure Steam Generator converts purified water into pharmaceutical-grade steam using controlled evaporation and separation processes.
Step 1: Feed Water Supply
Purified Water (PW) or Water for Injection (WFI) enters the Pure Steam Generator.
Step 2: Heating Process
Industrial steam heats the feed water through a heat exchanger.
The feed water begins to evaporate.
Step 3: Steam Generation
The generated vapor rises inside the evaporator section.
Step 4: Droplet Separation
Special separator assemblies remove:
- Water droplets
- Impurities
- Endotoxins
- Particulates
Only high-purity steam proceeds further.
Step 5: Pure Steam Distribution
The pure steam is supplied to:
- SIP systems
- Sterilizers
- Autoclaves
- Bioreactors
- Tanks
- Process equipment
The result is pharmaceutical-grade steam suitable for direct sterilization applications.
Major Components of a Pure Steam Generator
1. Feed Water System
Supplies purified water or WFI to the generator.
2. Heat Exchanger
Transfers thermal energy from plant steam to feed water.
3. Evaporator
Converts feed water into steam.
4. Separator
Ensures removal of droplets and contaminants.
5. Control System
Modern PSG systems use:
- PLC Controls
- HMI Interfaces
- Pressure Monitoring
- Temperature Monitoring
- Automated Safety Controls
6. Condensate Collection System
Handles condensed steam during testing and validation.
Pure Steam Quality Parameters
Pharmaceutical regulations require pure steam to meet strict quality standards.
Non-Condensable Gas Test
Measures gases that may reduce sterilization efficiency.
Dryness Fraction Test
Ensures steam contains adequate dry vapor for sterilization.
Superheat Test
Confirms steam is not excessively superheated.
Conductivity Test
Verifies condensate purity.
Endotoxin Testing
Confirms absence of pyrogens and bacterial endotoxins.
These tests are critical for validating Pure Steam Generator performance.
Applications of Pure Steam Generators
Sterilization-In-Place (SIP)
Pure steam is extensively used for SIP systems in pharmaceutical facilities.
Autoclaves
Used for sterilizing equipment, instruments, and materials.
Bioreactors
Maintains sterile conditions during biotechnology processes.
Fermenters
Supports contamination-free fermentation operations.
Pharmaceutical Tanks
Used for sterilizing storage and process vessels.
Process Piping Systems
Ensures pipelines remain sterile before production.
Vaccine Manufacturing Facilities
Critical for maintaining sterile manufacturing environments.
Pure Steam Generator for SIP Systems
One of the most common applications of a Pure Steam Generator is Sterilization-In-Place (SIP).
SIP systems allow equipment to be sterilized without dismantling.
Benefits include:
- Reduced downtime
- Improved productivity
- Better contamination control
- GMP compliance
- Lower labor requirements
Pure steam is the preferred sterilization medium for SIP processes across pharmaceutical and biotechnology facilities.
Pure Steam Generator vs Multi-Column Distillation Plant
Many pharmaceutical professionals confuse these systems.
| Feature | Pure Steam Generator | Multi-Column Distillation Plant |
|---|---|---|
| Output | Pure Steam | Water for Injection |
| Main Function | Sterilization | Water Generation |
| Application | SIP & Sterilization | Injectable Water |
| Final Product | Pure Steam | WFI |
Both systems are often installed together in pharmaceutical utility plants.
Multi-column-distillation-plant
Pure Steam Generator vs Clean Steam Generator
Although these terms are often used interchangeably, pharmaceutical applications generally require validated pure steam systems.
| Feature | Clean Steam Generator | Pure Steam Generator |
|---|---|---|
| Purity Level | High | Very High |
| Pharmaceutical Compliance | Moderate | Full GMP Requirement |
| Sterile Applications | Limited | Extensive |
Pure Steam Generators are generally preferred for critical pharmaceutical processes.
GMP and Regulatory Requirements
A pharmaceutical-grade Pure Steam Generator should comply with:
WHO GMP
Supports pharmaceutical manufacturing quality standards.
US FDA
Essential for facilities supplying regulated markets.
EU GMP
Required for European pharmaceutical manufacturing.
ASME Standards
Ensures safe pressure vessel design.
USP Standards
Defines pharmaceutical water and steam quality expectations.
ISPE Guidelines
Provides recommendations for pharmaceutical utility systems.
Validation Requirements for Pure Steam Generators
Validation is essential before commercial operation.
Typical validation activities include:
IQ (Installation Qualification)
Verification of correct installation.
OQ (Operational Qualification)
Verification of operating parameters.
PQ (Performance Qualification)
Verification of consistent performance under actual operating conditions.
Proper validation ensures compliance with GMP regulations.
Advantages of Pure Steam Generators
Contamination-Free Sterilization
Ensures product-contact surfaces remain sterile.
Regulatory Compliance
Supports GMP, FDA, and WHO requirements.
Automated Operation
Reduces operator intervention.
Improved Product Quality
Minimizes contamination risks.
Energy Efficient Design
Modern PSG systems maximize thermal efficiency.
Reliable Performance
Provides consistent steam quality throughout production.
How to Choose the Right Pure Steam Generator?
Before selecting a PSG, consider:
Required Steam Capacity
Determine sterilization demand.
Water Quality Requirements
Ensure compatibility with PW or WFI systems.
Material of Construction
Choose SS316L contact surfaces.
Automation Features
Look for PLC and HMI-based controls.
Validation Support
Ensure IQ, OQ, and PQ documentation availability.
Service and Maintenance
Choose a manufacturer with strong after-sales support.
Why Choose Mediclave Industries for Pure Steam Generators?
Mediclave Industries manufactures advanced Pure Steam Generators designed specifically for pharmaceutical and biotechnology industries.
Our systems offer:
- GMP-Compliant Design
- SS316L Product Contact Parts
- PLC-Based Automation
- High Purity Steam Generation
- Energy Efficient Operation
- Validation Documentation Support
- Customized Capacities
- Reliable After-Sales Service
Our solutions help pharmaceutical manufacturers maintain the highest standards of sterility, compliance, and operational efficiency.
Frequently Asked Questions (FAQs)
What is a Pure Steam Generator?
A Pure Steam Generator is a system that produces pharmaceutical-grade steam from purified water or WFI.
What is pure steam used for?
Pure steam is used for sterilization, SIP systems, autoclaves, bioreactors, tanks, and pharmaceutical equipment.
Is pure steam different from plant steam?
Yes. Pure steam is contaminant-free and suitable for pharmaceutical sterilization, whereas plant steam is primarily used for heating.
Can pure steam come into direct contact with equipment?
Yes. Pure steam is specifically designed for direct contact sterilization applications.
What water is used in a PSG?
Purified Water (PW) or Water for Injection (WFI).
Why is pure steam important?
It ensures sterile conditions and prevents contamination during pharmaceutical manufacturing.
What are the main tests for pure steam quality?
Dryness fraction, non-condensable gases, superheat, conductivity, and endotoxin testing.
What industries use Pure Steam Generators?
Pharmaceutical, biotechnology, vaccine manufacturing, healthcare, and life sciences industries.
What material is typically used in PSG construction?
SS316L stainless steel.
Is validation required?
Yes. IQ, OQ, and PQ validation are generally required for GMP compliance.
Conclusion
A Pure Steam Generator is an essential pharmaceutical utility system that ensures contamination-free sterilization across manufacturing facilities. By generating high-purity steam suitable for SIP systems, autoclaves, bioreactors, and sterile processing equipment, PSGs play a critical role in maintaining product quality, regulatory compliance, and patient safety.
For pharmaceutical companies seeking reliable sterilization solutions, investing in a GMP-compliant Pure Steam Generator is a crucial step toward achieving operational excellence and consistent product quality.
