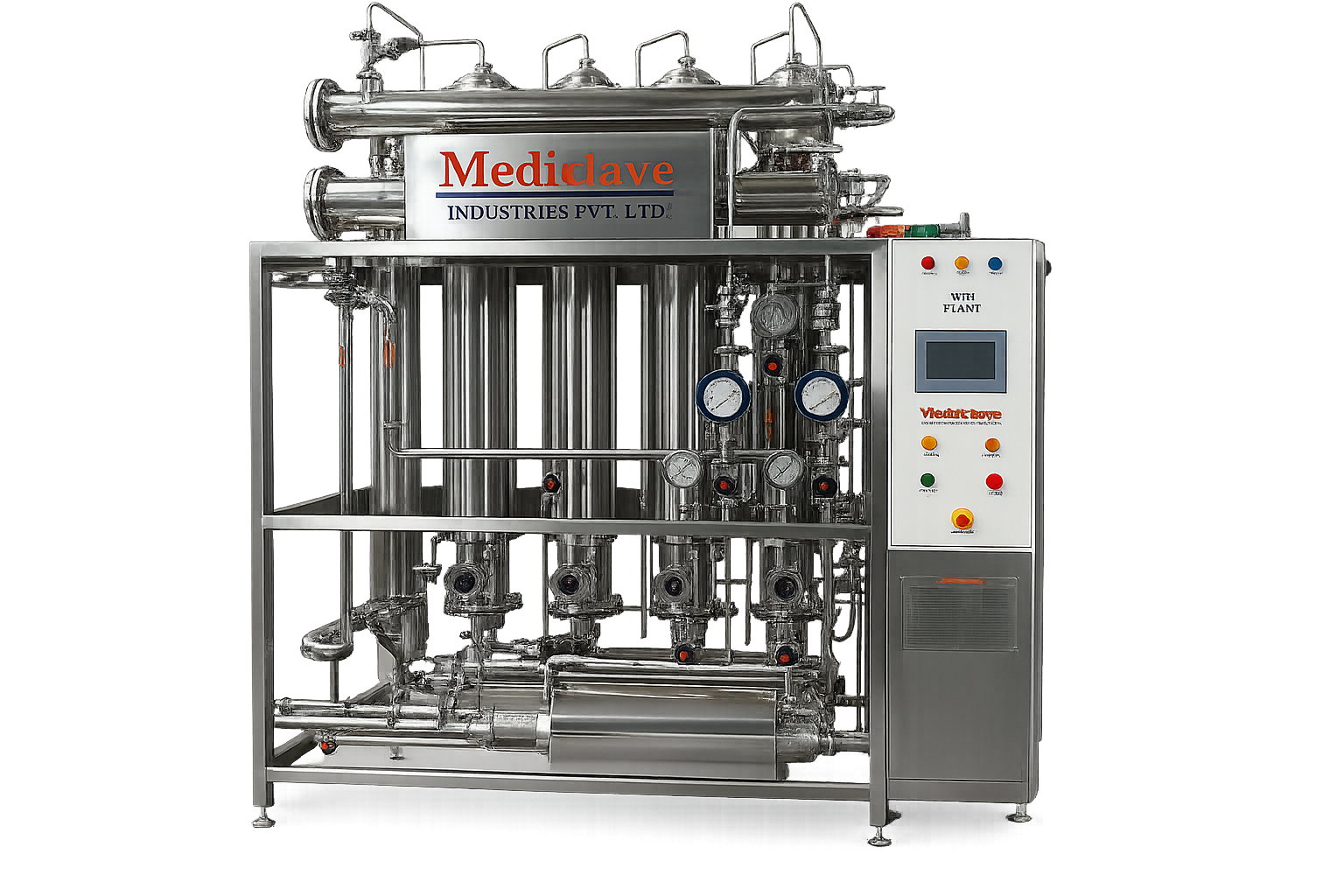

Multi Column Distillation Plant: Complete Guide for Water for Injection (WFI) Production
Water is one of the most critical raw materials used in pharmaceutical manufacturing. Whether producing injectables, vaccines, ophthalmic products, biotechnology products, or sterile formulations, pharmaceutical companies must ensure the highest level of water purity.
A Multi Column Distillation Plant (MCDP) is one of the most reliable and widely accepted systems used for generating Water for Injection (WFI). It provides pyrogen-free, sterile, and highly purified water that meets stringent pharmaceutical standards such as USP, EP, IP, and GMP requirements.
In this comprehensive guide, we will explore the working principle, components, applications, advantages, and selection criteria of a Multi Column Distillation Plant.
What is a Multi Column Distillation Plant?
A Multi Column Distillation Plant is a pharmaceutical water purification system designed to produce Water for Injection (WFI) through a multi-stage distillation process.
The plant consists of several distillation columns (effects) connected in series. Steam energy is reused across multiple columns, making the system highly energy-efficient while ensuring the removal of impurities, microorganisms, endotoxins, and pyrogens.
The produced WFI complies with international pharmacopoeia standards and is suitable for sterile pharmaceutical manufacturing.
Why is Water for Injection (WFI) Important?
Water for Injection is used in products that directly enter the human body. Therefore, it must be free from:
- Bacteria
- Endotoxins
- Pyrogens
- Dissolved impurities
- Organic contaminants
- Particulate matter
Any contamination can affect product quality and patient safety.
A Multi Column Distillation Plant ensures consistent production of pharmaceutical-grade WFI.
How Does a Multi Column Distillation Plant Work?
The operating principle is based on multiple-stage evaporation and condensation.
Step 1: Feed Water Entry
Purified water enters the first column of the distillation system.
The feed water typically comes from:
- Purified Water (PW) System
- Reverse Osmosis Plant
- EDI System
Step 2: Heating by Plant Steam
Plant steam heats the first column and converts feed water into pure vapor.
During evaporation:
- Salts remain behind
- Minerals are removed
- Microorganisms are destroyed
- Pyrogens are separated
Step 3: Multi-Stage Distillation
The generated vapor enters the second column.
Instead of wasting energy, vapor from the previous column acts as the heating medium for the next column.
This process continues through multiple columns.
Benefits include:
- Lower steam consumption
- Improved efficiency
- Reduced operating cost
Step 4: Pyrogen Separation
Special separation devices eliminate:
- Endotoxins
- Pyrogens
- Fine droplets
- Contaminants
This is one of the most important functions of the system.
Step 5: Condensation
The purified vapor is condensed into highly purified Water for Injection.
The final WFI meets pharmaceutical standards.
Step 6: WFI Storage and Distribution
The generated WFI is transferred to:
- WFI Storage Tanks
- Distribution Loops
- Injectable Production Areas
- Sterile Manufacturing Facilities
Major Components of a Multi Column Distillation Plant
1. Evaporator Columns
Multiple stainless steel columns where evaporation and distillation occur.
Features:
- High thermal efficiency
- GMP design
- SS316L construction
2. Demister and Separator System
Designed to remove:
- Water droplets
- Pyrogens
- Contaminants
Ensures pharmaceutical-grade purity.
3. Condenser
Converts purified steam into Water for Injection.
Provides:
- Stable water quality
- Efficient heat recovery
4. Control System
Modern systems utilize:
- PLC Automation
- HMI Interface
- SCADA Integration
For process monitoring and validation.
5. Instrumentation
Includes:
- Pressure transmitters
- Temperature sensors
- Flow meters
- Conductivity monitoring
Ensuring process reliability.
Applications of Multi Column Distillation Plants
Pharmaceutical Industry
Used for:
- Injectable manufacturing
- Sterile product manufacturing
- Vaccine production
- Biotechnology products
- Ophthalmic solutions
Healthcare Industry
Used in:
- Research laboratories
- Sterile processing facilities
- Medical product manufacturing
Biotechnology Industry
Suitable for:
- Cell culture applications
- Biopharmaceutical manufacturing
- Research facilities
Vaccine Manufacturing
Critical for producing:
- Injectable vaccines
- Biological products
- Sterile solutions
Advantages of a Multi Column Distillation Plant
Produces High-Purity WFI
Ensures compliance with international pharmacopoeia standards.
Excellent Pyrogen Removal
Effectively removes endotoxins and pyrogens.
Energy Efficient Design
Multiple-effect technology reduces steam consumption.
GMP Compliance
Designed according to pharmaceutical regulatory requirements.
Reliable Continuous Operation
Supports uninterrupted pharmaceutical production.
Low Operating Cost
Heat recovery significantly lowers utility expenses.
Automated Process Control
Reduces operator dependency and human errors.
Regulatory Standards for Multi Column Distillation Plants
A pharmaceutical WFI system should comply with:
- WHO GMP
- USFDA
- EU GMP
- USP Standards
- EP Standards
- IP Standards
- ISPE Guidelines
Important requirements include:
- SS316L contact parts
- Sanitary piping
- Surface finish compliance
- Validation support
- Automated documentation
Difference Between Multi Column Distillation Plant and Pure Steam Generator
| Parameter | Multi Column Distillation Plant | Pure Steam Generator |
|---|---|---|
| Output | Water for Injection (WFI) | Pure Steam |
| Application | Injectable water production | Sterilization |
| End Product | Highly purified water | High-purity steam |
| Main Use | Pharmaceutical manufacturing | Autoclaves & SIP |
In many pharmaceutical facilities, both systems are installed together.
How to Choose the Right Multi Column Distillation Plant?
Production Capacity
Common capacities include:
- 50 LPH
- 100 LPH
- 200 LPH
- 300 LPH
- 500 LPH
- 1000 LPH
- 2000 LPH
- Custom capacities
Material of Construction
Choose:
- SS316L product contact parts
- Electropolished surfaces
- GMP-compliant design
Automation Features
Look for:
- PLC Control
- HMI Interface
- SCADA Compatibility
- Data Logging
Validation Documentation
Ensure availability of:
- DQ
- IQ
- OQ
- PQ
Documentation support.
Why Choose Mediclave Industries for Multi Column Distillation Plants?
At Mediclave Industries Private Limited, we design and manufacture advanced pharmaceutical water systems that meet global quality standards.
Our Multi Column Distillation Plants offer:
✔ High WFI purity
✔ Superior pyrogen separation
✔ Energy-efficient operation
✔ GMP-compliant construction
✔ Fully automated controls
✔ Customized capacities
✔ Validation documentation support
✔ Reliable after-sales service
We provide complete pharmaceutical water generation solutions tailored to your manufacturing requirements.
Frequently Asked Questions (FAQs)
What is a Multi Column Distillation Plant?
A Multi Column Distillation Plant is a pharmaceutical system used for producing Water for Injection through multiple-stage distillation.
What is Water for Injection (WFI)?
WFI is highly purified water used in injectable and sterile pharmaceutical products.
Why is pyrogen removal important?
Pyrogens can cause adverse reactions in patients. Therefore, pharmaceutical water systems must effectively remove them.
What material is used in Multi Column Distillation Plants?
SS316L stainless steel is commonly used for all product contact surfaces.
Is a Multi Column Distillation Plant GMP compliant?
Yes. Pharmaceutical-grade systems are designed according to WHO GMP, USFDA, EU GMP, USP, EP, and IP standards.
Conclusion
A Multi Column Distillation Plant is a critical component of pharmaceutical water generation systems, ensuring the production of high-quality Water for Injection for sterile and injectable products. With advanced multi-effect distillation technology, excellent pyrogen removal, and GMP-compliant construction, these systems provide reliable, efficient, and regulatory-compliant water purification solutions for the pharmaceutical industry.
