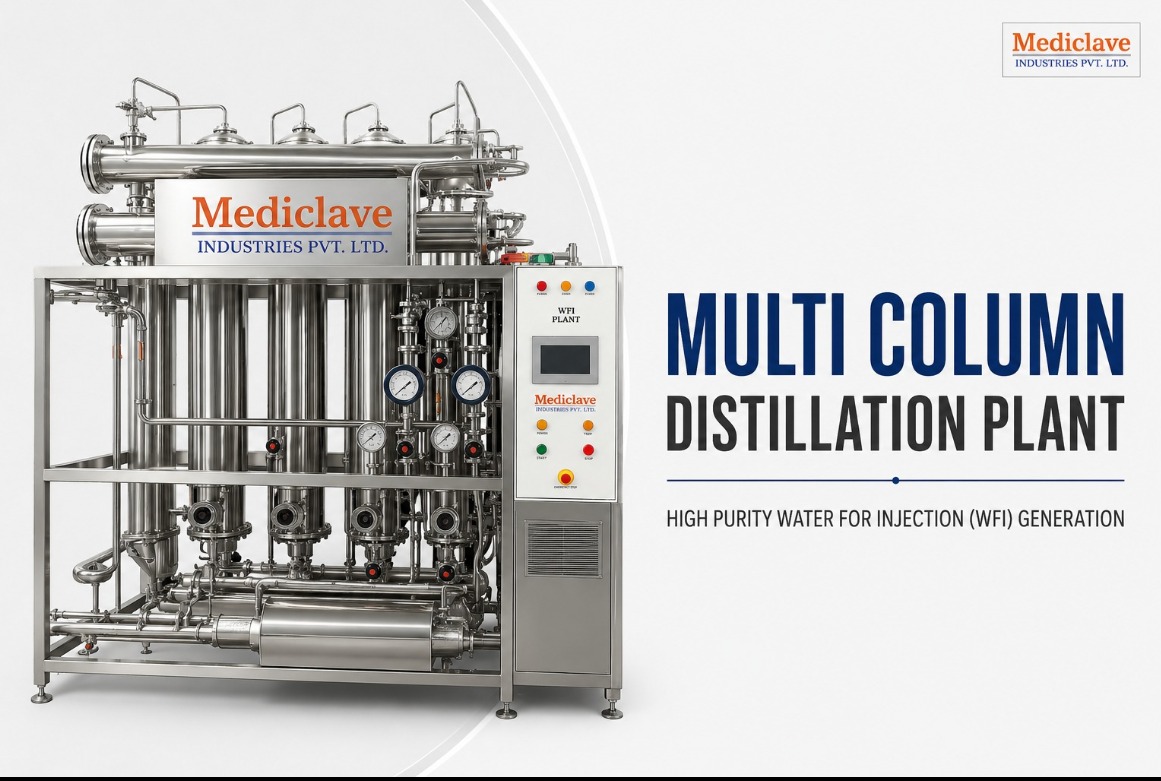

Multi Column Distillation Plant: The Ultimate Solution for Water for Injection (WFI) Generation in Pharmaceutical Industries
Introduction
Water is one of the most critical raw materials used in pharmaceutical manufacturing. Whether producing injectables, vaccines, sterile formulations, or biotechnology products, the quality of water directly impacts product safety, efficacy, and regulatory compliance.
A Multi Column Distillation Plant (MCDP) is a specialized pharmaceutical water generation system designed to produce Water for Injection (WFI) of the highest purity standards. It is widely used in pharmaceutical, biotechnology, healthcare, and life science industries where sterile water is essential for manufacturing processes.
At Mediclave Industries Pvt. Ltd., we manufacture GMP-compliant Multi Column Distillation Plants engineered to deliver reliable, energy-efficient, and high-purity WFI generation solutions for pharmaceutical facilities worldwide.
What is a Multi Column Distillation Plant?
A Multi Column Distillation Plant is a pharmaceutical utility system used to generate Water for Injection (WFI) through a multi-stage distillation process.
The system removes:
Dissolved salts
Pyrogens
Endotoxins
Microorganisms
Organic impurities
Particulate contaminants
The resulting WFI meets international pharmacopoeia standards including:
USP
EP
IP
JP
making it suitable for sterile pharmaceutical manufacturing.
Why Water for Injection (WFI) is Important
Water for Injection is used extensively in pharmaceutical production because it offers the highest level of purity required for sterile applications.
WFI is commonly used for:
Injectable drug manufacturing
Vaccine production
Sterile formulation preparation
Equipment cleaning
CIP/SIP systems
Pharmaceutical process applications
Without high-quality WFI, manufacturers cannot maintain regulatory compliance or product sterility.
Working Principle of Multi Column Distillation Plant
The Multi Column Distillation Plant operates using multiple distillation columns arranged in sequence.
Step 1: Feed Water Supply
Purified water enters the first column.
Typically, water is supplied from a:
Purified Water Generation System
Step 2: Heating and Evaporation
Plant steam transfers heat to the feed water, causing evaporation.
Step 3: Multi-Stage Distillation
The generated vapor moves through multiple columns where heat recovery takes place.
This improves:
Thermal efficiency
Energy savings
Production capacity
Step 4: Separation of Impurities
Special separators remove:
Pyrogens
Endotoxins
Moisture droplets
Non-condensable gases
Step 5: Condensation
The purified vapor condenses into pharmaceutical-grade Water for Injection.
Step 6: Distribution
The WFI is transferred to storage and distribution systems for pharmaceutical use.
Major Components of Multi Column Distillation Plant
Distillation Columns
Multiple columns increase production efficiency and purity levels.
Evaporator
Converts feed water into vapor.
Condenser
Converts purified vapor into WFI.
Steam Separator
Ensures separation of contaminants and droplets.
Control Panel
PLC-HMI based automation system for process control.
Instrumentation
Includes:
Temperature indicators
Pressure transmitters
Flow meters
Conductivity sensors
Key Features of Multi Column Distillation Plants
GMP-Compliant Construction
Designed according to pharmaceutical industry standards.
SS316L Product Contact Parts
Provides superior corrosion resistance and hygienic operation.
High Thermal Efficiency
Multiple-effect design reduces energy consumption.
Continuous WFI Production
Ensures uninterrupted water supply.
PLC Automation
Improves reliability and operational control.
Validation Ready
Supports:
DQ
IQ
OQ
PQ documentation
Applications of Multi Column Distillation Plants
Injectable Manufacturing
WFI is a critical component in injectable production systems.
Related Equipment:
Injectable Liquid Manufacturing Vessel
Vaccine Manufacturing
Vaccines require pharmaceutical-grade water during formulation and production.
Biotechnology Industry
Used in:
Cell culture processes
Fermentation systems
Biopharmaceutical production
Sterile Pharmaceutical Manufacturing
Supports sterile formulation preparation and equipment sterilization.
Utility Systems
Frequently integrated with:
Pure Steam Generator Systems
Advantages of Multi Column Distillation Plants
High Water Purity
Produces Water for Injection meeting pharmacopoeia standards.
Regulatory Compliance
Supports:
GMP
WHO GMP
US FDA
EU GMP
Energy Efficiency
Multiple columns maximize heat recovery and minimize utility costs.
Consistent Production
Ensures stable WFI output for continuous operations.
Low Maintenance
Designed for reliable long-term performance.
Enhanced Product Safety
Helps maintain sterility and product quality.
Multi Column Distillation Plant vs Conventional Distillation System
Parameter
Multi Column Distillation Plant
Conventional Distillation
Energy Efficiency
High
Moderate
Heat Recovery
Excellent
Limited
Water Quality
Pharmaceutical Grade WFI
Lower
Operating Cost
Lower
Higher
Production Capacity
High
Moderate
GMP Compliance
Yes
Limited
The multi-column design significantly improves efficiency and water quality compared to traditional systems.
Integration with Pharmaceutical Utility Systems
A Multi Column Distillation Plant is often integrated with other pharmaceutical equipment.
Pure Steam Generation
Pure Steam Generator Systems
Injectable Manufacturing
Injectable Liquid Manufacturing Vessel
Sterilization Equipment
Horizontal Rectangular Autoclave
Steam Air Mixture Sterilizer
Oral Liquid Manufacturing
Liquid Syrup Manufacturing Process Plant
Together, these systems create a complete pharmaceutical manufacturing infrastructure.
Industries Using Multi Column Distillation Plants
Pharmaceutical Industry
Production of sterile drugs and injectables.
Biotechnology Industry
Biological product manufacturing.
Vaccine Manufacturing Facilities
High-purity water generation.
Research Laboratories
Pharmaceutical research applications.
Healthcare Industry
Sterile utility support systems.
Life Science Facilities
Advanced pharmaceutical processing.
Factors to Consider Before Buying a Multi Column Distillation Plant
Required WFI Capacity
Choose a system based on daily water demand.
Material of Construction
SS316L is preferred for pharmaceutical applications.
Our Multi Column Distillation Plants are designed to deliver exceptional performance, reliability, and compliance for modern pharmaceutical facilities.
Conclusion
A Multi Column Distillation Plant is one of the most important utility systems in pharmaceutical manufacturing. It ensures the production of Water for Injection that meets the highest international quality standards.
Whether integrated with Pure Steam Generators, Injectable Manufacturing Vessels, Autoclaves, or complete pharmaceutical processing facilities, an efficient MCDP contributes significantly to product quality, sterility assurance, and regulatory compliance.
For pharmaceutical companies seeking reliable WFI generation solutions, a GMP-compliant Multi Column Distillation Plant is a valuable long-term investment.
Frequently Asked Questions (FAQ)
1. What is a Multi Column Distillation Plant?
A Multi Column Distillation Plant is a pharmaceutical water generation system used to produce Water for Injection (WFI) through multiple-stage distillation.
2. What is Water for Injection (WFI)?
WFI is highly purified water used in injectable drugs, vaccines, sterile manufacturing, and pharmaceutical processing applications.
3. Why is a Multi Column Distillation Plant used in pharmaceutical industries?
It removes pyrogens, endotoxins, microorganisms, and impurities to produce pharmaceutical-grade water.
4. What material is used in MCDP construction?
Most pharmaceutical-grade systems use SS316L stainless steel for product-contact components.
5. Can MCDP be integrated with Pure Steam Generators?
Yes. Multi Column Distillation Plants are commonly integrated with Pure Steam Generator Systems for complete sterile utility solutions.
6. What industries use Multi Column Distillation Plants?
Pharmaceutical, biotechnology, vaccine manufacturing, healthcare, research, and life science industries.
7. Is WFI required for injectable manufacturing?
Yes. WFI is a critical requirement for injectable drug production and sterile pharmaceutical processes.
8. Are Multi Column Distillation Plants GMP compliant?
Modern MCDP systems are designed according to GMP, WHO-GMP, US FDA, and EU GMP standards.
9. What are the benefits of a Multi Column Distillation Plant?
Benefits include high water purity, energy efficiency, regulatory compliance, consistent production, and reduced operating costs.
10. How do I choose the right Multi Column Distillation Plant?
Consider WFI capacity requirements, material of construction, automation level, utility consumption, and validation support before selecting a system.
