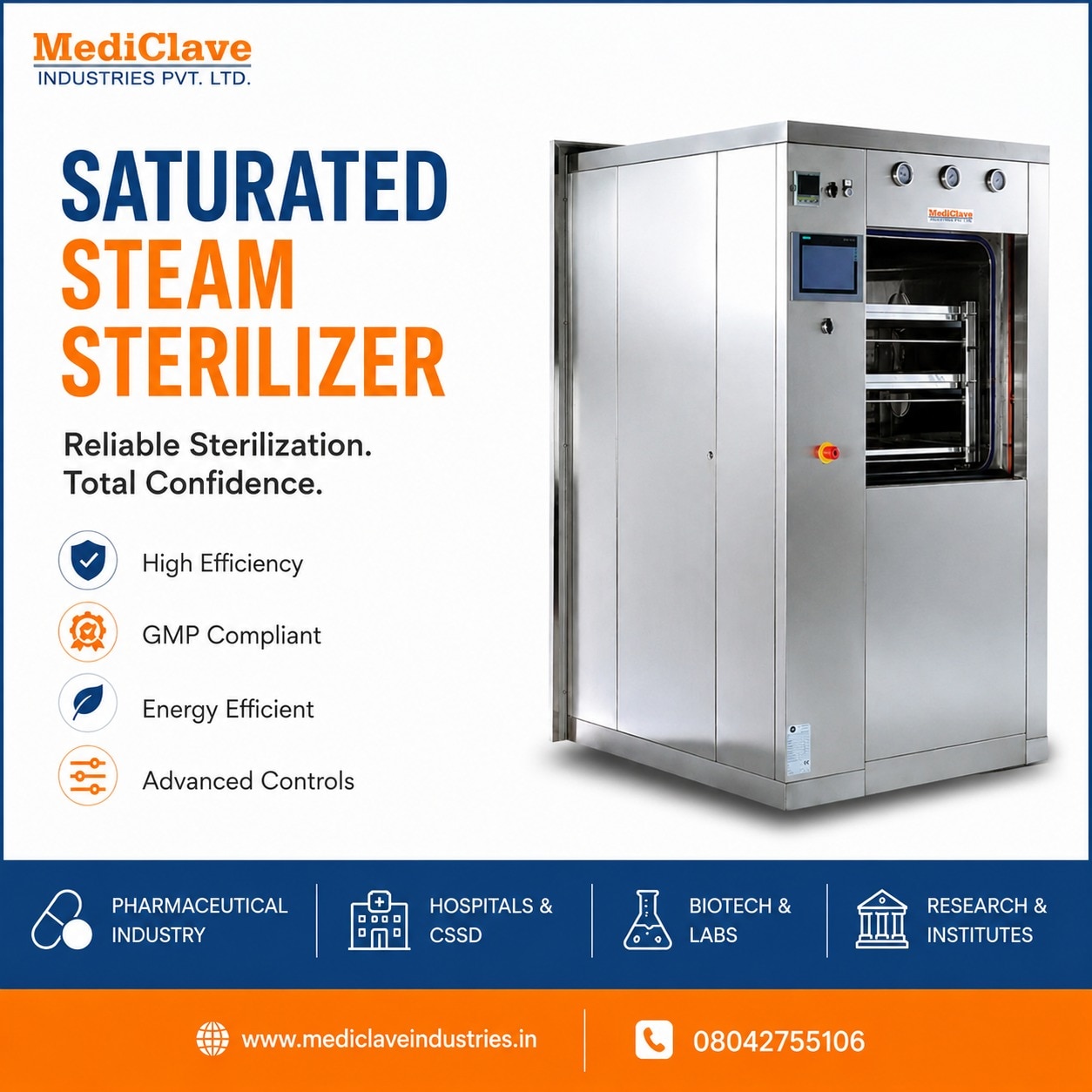

High-Performance Saturated Steam Sterilizer for Pharmaceutical, Healthcare & Industrial Applications
A Saturated Steam Sterilizer is one of the most reliable and effective sterilization systems used in pharmaceutical manufacturing, biotechnology laboratories, hospitals, research facilities, and medical device industries. It utilizes high-temperature saturated steam under controlled pressure conditions to eliminate bacteria, viruses, fungi, spores, and other microorganisms from equipment, instruments, garments, containers, and production materials.
At Mediclave Industries Pvt. Ltd., we manufacture advanced Saturated Steam Sterilizers designed to deliver consistent sterilization performance while meeting stringent GMP, FDA, WHO-GMP, and international validation requirements. Our systems are engineered for maximum efficiency, process reliability, operator safety, and long-term operational durability.
What is a Saturated Steam Sterilizer?
A Saturated Steam Sterilizer is a sterilization chamber that uses pure saturated steam to transfer thermal energy directly onto the load. The steam penetrates porous materials, equipment surfaces, glassware, stainless steel components, garments, and production accessories, ensuring complete microbial destruction.
The sterilization process typically operates between 121°C and 134°C under controlled pressure and exposure times. This method is widely recognized as the most economical, environmentally friendly, and validated sterilization technology available today.
Key Features
✔ Stainless Steel Construction (SS 304 / SS 316L)
✔ Horizontal and Vertical Configuration Available
✔ Fully Automatic PLC-Based Control System
✔ HMI Touch Screen Interface
✔ High Vacuum System for Air Removal
✔ Uniform Steam Distribution
✔ Automatic Cycle Operation
✔ Data Logging & Report Generation
✔ GMP & FDA Compliant Design
✔ Safety Interlocking System
✔ Energy Efficient Operation
✔ Low Maintenance Requirement
✔ Validation Documentation Support
Working Principle
The Saturated Steam Sterilizer operates through a precisely controlled sterilization cycle:
Pre-Vacuum Phase
Air is removed from the chamber using a vacuum system to ensure effective steam penetration.
Steam Injection Phase
Pure saturated steam is introduced into the chamber under controlled pressure.
Exposure Phase
The load is maintained at the required sterilization temperature for a validated holding period.
Exhaust Phase
Steam is safely discharged after completion of sterilization.
Drying Phase
Vacuum drying removes residual moisture from the sterilized materials.
Cycle Completion
The system automatically completes the process and releases the load for use.
Applications
Pharmaceutical Industry
- Sterilization of equipment
- Stainless steel containers
- Production accessories
- Machine parts
- Glassware
Hospitals & Healthcare Facilities
- Surgical instruments
- Medical devices
- Dressing materials
- Reusable healthcare products
Biotechnology Industry
- Laboratory equipment
- Culture media
- Research tools
Medical Device Manufacturing
- Product components
- Packaging accessories
- Manufacturing equipment
Research Laboratories
- Glassware sterilization
- Laboratory instruments
- Experimental materials
Technical Specifications
| Parameter | Specification |
|---|---|
| Chamber Volume | 100 Liters to 10,000 Liters |
| Operating Temperature | 121°C to 134°C |
| Chamber Material | SS 316L |
| Jacket Material | SS 304 / SS 316 |
| Control System | PLC + HMI |
| Vacuum System | Water Ring Vacuum Pump |
| Steam Source | Plant Steam / Built-In Generator |
| Documentation | IQ, OQ, PQ Support |
| Compliance | GMP, FDA, WHO-GMP |
Advantages of Saturated Steam Sterilization
- Highly effective microbial destruction
- Fast sterilization cycle
- Excellent steam penetration
- Environment-friendly process
- No toxic chemical residue
- Cost-effective operation
- Reliable and validated technology
- Suitable for a wide range of applications
- Consistent and repeatable results
Why Choose Mediclave Industries?
Mediclave Industries Pvt. Ltd. is a trusted manufacturer of pharmaceutical and healthcare sterilization equipment. Our Saturated Steam Sterilizers are designed and manufactured according to international quality standards and customized to meet specific client requirements.
Our Strengths
- Customized design solutions
- In-house manufacturing facility
- Experienced engineering team
- Validation support
- Installation & commissioning services
- After-sales technical support
- Competitive pricing
- Global supply capability
Industries We Serve
- Pharmaceutical Manufacturing
- Biotechnology Facilities
- Hospitals & Healthcare Centers
- Research Laboratories
- Medical Device Manufacturing
- Food Processing Industry
- Chemical Industry
- Veterinary Healthcare Facilities
Request a Quote
Looking for a reliable Saturated Steam Sterilizer Manufacturer in India?
Mediclave Industries Pvt. Ltd. offers customized, GMP-compliant Saturated Steam Sterilizers designed for superior sterilization performance, operational efficiency, and regulatory compliance.
Contact our team today for technical consultation, pricing, and customized solutions tailored to your application requirements.
