Sterilization
plays an essential role in healthcare, pharmaceutical manufacturing, and
medical device production. Every medical instrument or device that requires
sterilization must undergo a suitable, validated process to help protect
patients and maintain product safety. However, not all medical devices can
withstand the high temperatures and moisture associated with steam
sterilization.
This is
where an ETO Sterilizer Machine becomes an important solution.
Ethylene
Oxide (ETO) sterilization is a low-temperature sterilization method used for
certain heat-sensitive and moisture-sensitive medical devices. It is
particularly valuable for compatible plastic components, complex medical
instruments, and products that may be damaged by conventional steam
sterilization.
Mediclave Industries Private Limited, a manufacturer of sterilization
equipment in India, offers ETO sterilization solutions for hospitals, medical
device manufacturers, and pharmaceutical applications.
In this
blog, we explore how ETO sterilizer machines work, their features,
applications, benefits, and important factors to consider when selecting the
right equipment.

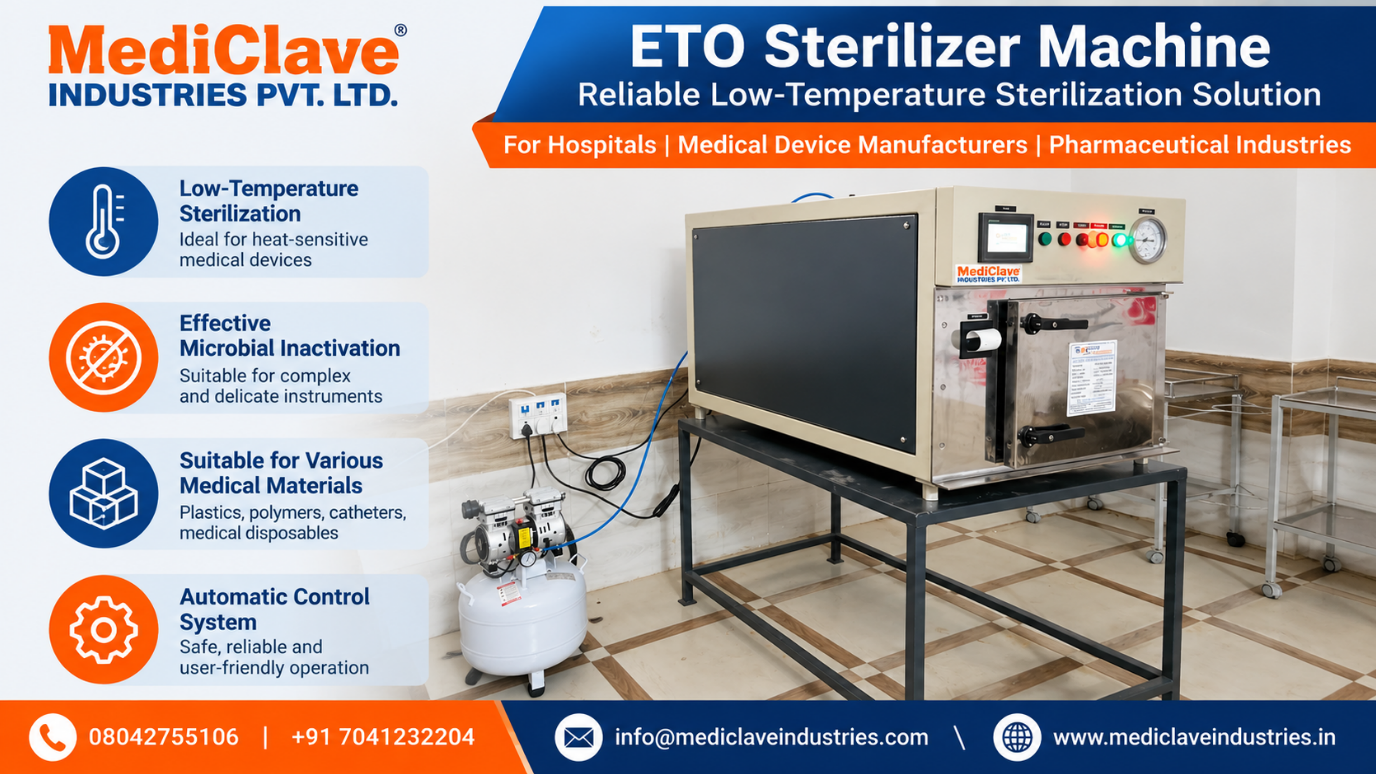

What Is an ETO Sterilizer Machine?
An ETO
Sterilizer Machine, also known as an Ethylene Oxide Sterilizer, is
specialized equipment that uses ethylene oxide gas under controlled conditions
to sterilize compatible medical devices and materials.
Ethylene
oxide is an effective sterilizing agent because it can penetrate certain
packaging materials and reach difficult-to-access areas of suitably designed
medical devices.
Unlike
conventional steam sterilization, ETO sterilization operates at comparatively
low temperatures, making it suitable for selected products that cannot tolerate
high-temperature steam exposure.
ETO
sterilization is commonly used for:
- Heat-sensitive
medical devices
- Selected
plastic medical components
- Catheters
and tubing
- Certain
surgical instruments
- Compatible
electronic medical devices
- Medical
disposables
- Selected
packaged healthcare products
ETO
sterilization must be performed using validated processes, appropriate safety
controls, and suitable post-sterilization aeration.
How Does an ETO Sterilizer Machine Work?
The
working principle of an ETO sterilizer involves exposing compatible products to
ethylene oxide gas under carefully controlled conditions.
A typical
ETO sterilization process involves several stages.
1. Preconditioning
Before
sterilization, products may undergo preconditioning to achieve the required
temperature and humidity conditions.
Proper
preconditioning helps prepare the load for effective gas sterilization.
2. Air Removal and Conditioning
Depending
on the sterilizer design, air is removed from the chamber, and the required environmental
conditions are established.
Temperature,
humidity, and pressure are controlled according to the validated process.
3. Ethylene Oxide Gas Exposure
Ethylene
oxide gas is introduced into the sterilization chamber under controlled
conditions.
The gas
interacts with essential biological molecules in microorganisms, preventing
their normal biological functions.
Effective
sterilization depends on factors including gas concentration, exposure time,
temperature, humidity, and load characteristics.
4. Gas Removal
After the
exposure phase, ethylene oxide gas is removed from the chamber through a
controlled process.
Gas
evacuation and treatment arrangements depend on the sterilizer design and
applicable safety requirements.
5. Aeration
Aeration
is a critical stage of ETO sterilization.
Sterilized
products must undergo an appropriate aeration process to reduce residual
ethylene oxide and related compounds to acceptable levels before release for
their intended use.
The
required aeration conditions depend on the product, packaging, validated
process, and applicable residual limits.
Key Features of an ETO Sterilizer Machine
Modern
ETO sterilizers may incorporate automation, process monitoring, and engineered
safety systems to support controlled sterilization operations.
Stainless Steel Sterilization Chamber
ETO
sterilizer chambers are designed using materials suitable for the intended
process and operating conditions.
A
properly engineered chamber supports controlled gas exposure and repeated
sterilization operations.
Automatic Control System
Depending
on the configuration, ETO sterilizers may include PLC-based controls and HMI
interfaces for managing process parameters.
Automation
can help operators monitor and execute validated sterilization cycles.
Temperature and Humidity Monitoring
Temperature
and humidity are important parameters in ETO sterilization.
Monitoring
these conditions helps maintain the required process environment.
Gas Handling and Safety Systems
Because
ethylene oxide is toxic, flammable, and carcinogenic, suitable gas handling,
ventilation, leak detection, and emergency protection arrangements are
essential.
Process Data Recording
Some ETO
sterilizers include digital recording or printing systems for documenting cycle
parameters and supporting quality assurance.
Configurable Chamber Capacity
ETO
sterilizers are available in different chamber capacities to accommodate
various load sizes and production requirements.
The exact
features and configurations should be confirmed with the manufacturer.
Applications of ETO Sterilizer Machines
ETO
sterilization is widely used in industries where product compatibility and
low-temperature sterilization are important.
1. Hospitals and Healthcare Facilities
Hospitals
may use ETO sterilization for selected reusable medical devices that cannot
tolerate steam sterilization and whose manufacturers permit ETO processing.
2. Medical Device Manufacturing
Medical
device manufacturers use validated ETO sterilization processes for compatible
products such as catheters, tubing, plastic components, and certain packaged
devices.
3. Pharmaceutical Industry
ETO
sterilization may be used for certain compatible materials and components
associated with pharmaceutical manufacturing, subject to applicable product and
process requirements.
4. Surgical Instrument Processing
Selected
heat-sensitive surgical instruments may be suitable for ETO sterilization when
permitted by their manufacturers' reprocessing instructions.
5. Healthcare Disposable Products
Certain
single-use medical products are sterilized using validated industrial ETO
processes before distribution.
Benefits of Using an ETO Sterilizer Machine
Low-Temperature Sterilization
ETO
sterilization is suitable for certain medical devices that cannot withstand
conventional high-temperature steam sterilization.
Penetration into Complex Devices
Under
validated conditions, ethylene oxide gas can penetrate compatible packaging and
reach challenging areas of certain medical devices.
Suitable for Different Medical Materials
ETO sterilization
may be appropriate for selected plastics, polymers, and other compatible
materials.
Controlled Sterilization Process
Automatic
controls and monitoring systems can support consistent execution of validated
sterilization cycles.
Industrial Processing Capability
ETO
sterilization systems can be configured for different load sizes and production
requirements.
These
benefits must be considered alongside the method's longer processing times,
aeration requirements, environmental controls, and occupational safety
obligations.
ETO Sterilizer vs Steam Sterilizer: What Is the
Difference?
Both ETO
sterilizers and steam sterilizers are used for sterilization, but they operate
using different technologies.
|
Feature |
ETO Sterilizer |
Steam Sterilizer |
|
Sterilizing
Agent |
Ethylene
oxide gas |
Saturated
steam |
|
Temperature |
Relatively
low |
Higher |
|
Suitable
Materials |
Selected
heat-sensitive devices |
Heat-
and moisture-resistant devices |
|
Processing
Time |
Generally
longer |
Generally
shorter |
|
Aeration |
Required |
Not
required for EO residue removal |
|
Main
Applications |
Compatible
medical devices and components |
Surgical
instruments and other steam-compatible loads |
Steam
sterilization is generally preferred for medical devices that can safely
withstand it. ETO is considered when device compatibility and validated
processing requirements make it an appropriate alternative.
How to Choose the Right ETO Sterilizer Machine
Choosing
an ETO sterilizer requires careful evaluation of technical, operational, and
safety requirements.
Chamber Capacity
Select
chamber dimensions and capacity according to the number, size, and packaging
configuration of products requiring sterilization.
Automation Requirements
Consider
the required level of automation, process monitoring, alarm systems, and data recording.
Safety and Gas Management
Evaluate
gas supply arrangements, leak detection, ventilation, exhaust treatment, and
emergency safety systems.
Validation Requirements
Medical
device manufacturers should consider applicable sterilization validation requirements,
including ISO 11135 where relevant.
Aeration Arrangements
Ensure
that the overall sterilization workflow includes suitable aeration and residual
testing or verification procedures as required.
Maintenance and Technical Support
Evaluate
the availability of technical support, preventive maintenance, spare parts, and
operator training.
Why Choose Mediclave Industries for ETO Sterilizer
Machines?
Mediclave Industries Private Limited, based in Ahmedabad, Gujarat,
India, manufactures sterilization and pharmaceutical equipment for healthcare
and industrial applications.
We
understand that medical device manufacturers, hospitals, and pharmaceutical
facilities have different sterilization requirements.
Our focus
is on providing suitable equipment solutions based on chamber capacity,
application, process controls, and operational requirements.
Customers
can explore our ETO Sterilizer
solutions and learn more about our hospital CSSD
sterilization equipment.
For
product specifications and quotation enquiries, visit the Mediclave Industries
official website.
Frequently Asked Questions (FAQs)
1. What is an ETO Sterilizer Machine?
An ETO
sterilizer machine uses ethylene oxide gas under controlled conditions to
sterilize compatible medical devices and materials, particularly those
sensitive to high-temperature steam.
2. Where is ETO sterilization used?
ETO
sterilization is used in medical device manufacturing, selected hospital
instrument reprocessing applications, and other specialized industrial
sterilization processes.
3. What is the difference between ETO and autoclave
sterilization?
ETO
sterilization uses ethylene oxide gas at relatively low temperatures, while
steam autoclaves use saturated steam under pressure. The appropriate method
depends on the product and its validated sterilization requirements.
4. How long does ETO sterilization take?
The
duration depends on the validated cycle, product configuration, gas exposure
requirements, and aeration process. Complete ETO processing can take
substantially longer than a typical steam sterilization cycle.
5. Is ETO sterilization safe?
ETO
sterilization can be performed safely in appropriately engineered and
controlled facilities by trained personnel following applicable procedures.
Ethylene oxide is hazardous, so exposure control, ventilation, gas management,
aeration, and regulatory compliance are essential.
6. What is the price of an ETO Sterilizer Machine
in India?
ETO
sterilizer prices depend on chamber capacity, automation, gas handling
arrangements, safety systems, and validation requirements. Contact Mediclave
Industries for a quotation based on your technical specifications.
7. Who manufactures ETO Sterilizer Machines in
India?
Mediclave
Industries Private Limited is among the Indian manufacturers offering ETO sterilization
equipment for healthcare and industrial applications.
Conclusion
An ETO
Sterilizer Machine is an important solution for sterilizing compatible
heat-sensitive and moisture-sensitive medical devices.
With
controlled gas exposure, suitable automation, effective gas management, and
proper aeration, ETO sterilization supports the processing of medical devices
that may not be suitable for conventional steam sterilization.
Selecting
the right equipment requires careful consideration of product compatibility,
chamber capacity, safety requirements, validation, and long-term operational
needs.
Mediclave Industries Private Limited provides sterilization equipment
solutions for hospitals, pharmaceutical industries, and medical device
manufacturers.
For technical
information or an ETO Sterilizer Machine quotation, contact our team.
Contact Mediclave Industries Private Limited
ETO Sterilizer Machine Manufacturer & Supplier in India
Phone: 08042755106
Mobile: +91 7041232204
Email: info@mediclaveindustries.com
Website: https://www.mediclaveindustries.in/
Location: Ahmedabad, Gujarat, India
