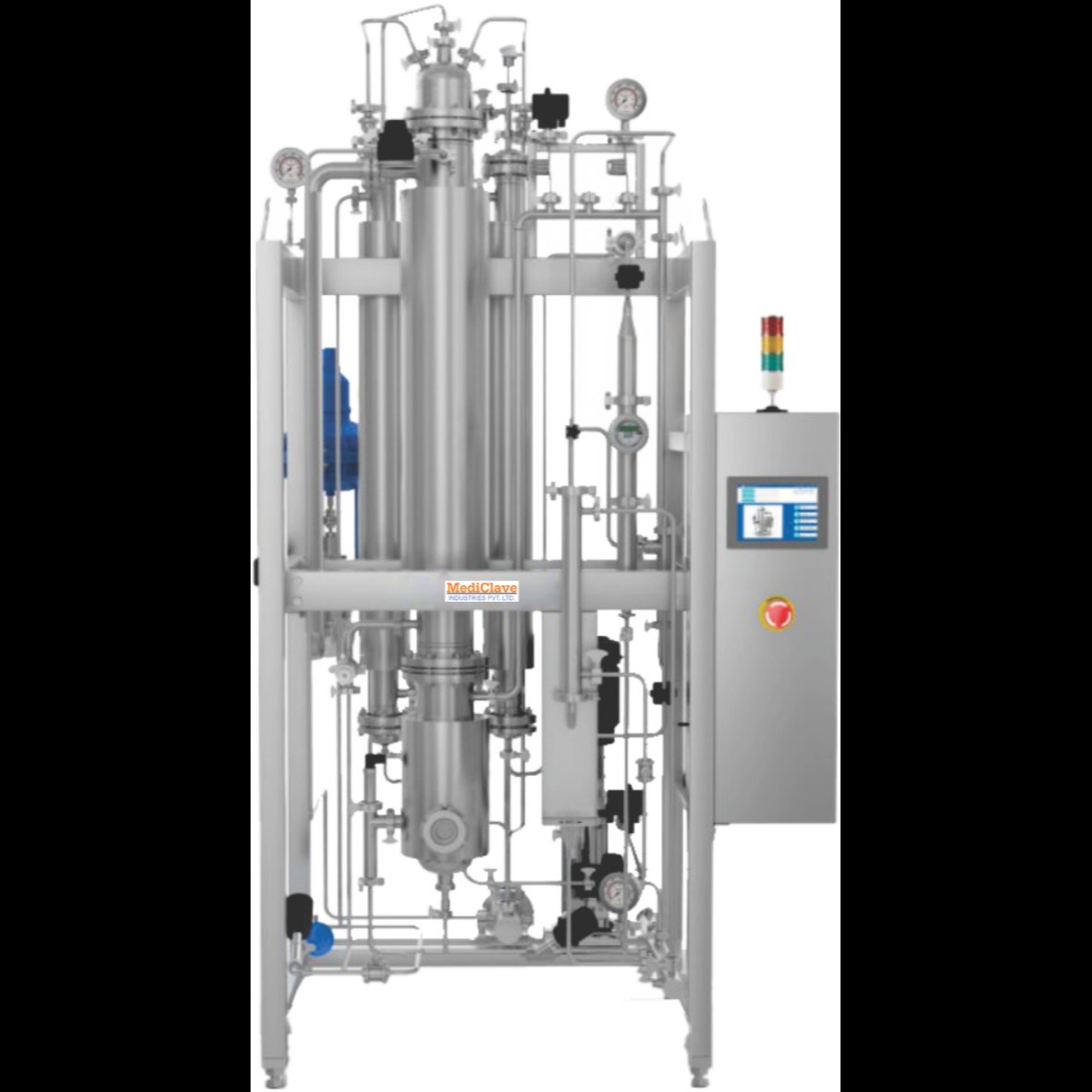

Pure Steam Generator: Complete Guide for Pharmaceutical Sterilization Systems
Sterility is one of the most critical requirements in pharmaceutical, biotechnology, and healthcare manufacturing facilities. To maintain contamination-free production environments, industries rely on Pure Steam Generators (PSG) for sterilization and cleaning processes.
A Pure Steam Generator produces high-purity steam free from contaminants, chemicals, pyrogens, and impurities. This steam is widely used for Sterilization-In-Place (SIP), sterilizing process equipment, tanks, pipelines, and critical pharmaceutical systems.
In modern pharmaceutical facilities, a Pure Steam Generator is considered an essential utility system alongside Water for Injection (WFI) systems and Multi Column Distillation Plants.
What is a Pure Steam Generator?
A Pure Steam Generator (PSG) is a pharmaceutical utility system designed to generate sterile, pyrogen-free, and contamination-free steam using purified water or Water for Injection (WFI).
Unlike industrial plant steam, pure steam comes into direct contact with pharmaceutical equipment and product-contact surfaces without causing contamination.
Pure steam is produced according to international pharmaceutical standards and is suitable for sterile manufacturing operations.
Why is Pure Steam Important in Pharmaceuticals?
In pharmaceutical production, equipment such as reactors, mixing vessels, filling machines, transfer lines, and storage tanks must be sterilized regularly.
Using ordinary plant steam can introduce:
- Rust particles
- Chemical contaminants
- Boiler treatment chemicals
- Minerals
- Microorganisms
Pure steam eliminates these risks and ensures sterile processing conditions.
Working Principle of a Pure Steam Generator
The operation of a Pure Steam Generator is based on controlled evaporation and separation technology.
Step 1: Feed Water Supply
The system receives feed water from:
- Purified Water (PW) System
- Water for Injection (WFI) System
The water must meet pharmaceutical quality standards.
Step 2: Heating Process
Plant steam is supplied to the heat exchanger section.
The feed water is heated and converted into steam.
Step 3: Evaporation
The heated water undergoes evaporation inside the generator.
During this process:
- Water becomes vapor
- Non-volatile impurities remain behind
- Microorganisms are eliminated
Step 4: Steam Separation
Special separators remove:
- Water droplets
- Endotoxins
- Pyrogens
- Particulate contamination
This ensures high-purity steam generation.
Step 5: Pure Steam Delivery
The generated pure steam is delivered to various sterilization points throughout the facility.
The steam can be used immediately for sterilization operations.
Major Components of a Pure Steam Generator
1. Evaporator
The evaporator converts purified water into steam.
Features:
- High thermal efficiency
- GMP design
- SS316L construction
2. Steam Separator
The separator removes moisture and contaminants from generated steam.
Benefits:
- Dry steam quality
- High purity levels
- Improved sterilization efficiency
3. Heat Exchanger
Provides efficient heat transfer between plant steam and feed water.
4. Control System
Modern systems include:
- PLC Automation
- HMI Interface
- SCADA Integration
- Alarm Management
5. Instrumentation
Includes:
- Pressure indicators
- Temperature sensors
- Flow transmitters
- Conductivity monitoring
Applications of Pure Steam Generators
Sterilization-In-Place (SIP)
The most common application of pure steam is SIP sterilization.
Used for:
- Bioreactors
- Mixing vessels
- Storage tanks
- Process pipelines
Autoclaves
Pure steam is supplied to pharmaceutical autoclaves for sterilization processes.
Applications include:
- Equipment sterilization
- Component sterilization
- Material sterilization
Sterile Manufacturing Areas
Used in:
- Injectable production
- Vaccine manufacturing
- Biotechnology facilities
- Sterile filling lines
Pharmaceutical Process Equipment
Pure steam sterilizes:
- Manufacturing vessels
- Transfer systems
- Filling equipment
- Filtration systems
Advantages of a Pure Steam Generator
High-Purity Steam Production
Generates steam suitable for direct pharmaceutical use.
Excellent Sterility Assurance
Supports validated sterilization processes.
GMP Compliance
Designed according to pharmaceutical regulatory requirements.
Reduced Contamination Risk
Eliminates contaminants associated with plant steam.
Reliable Sterilization
Provides consistent sterilization performance.
Automated Operation
Modern PLC systems reduce operator intervention.
Low Maintenance
Designed for continuous pharmaceutical operation.
Pure Steam Generator vs Plant Steam
| Parameter | Pure Steam Generator | Plant Steam |
|---|---|---|
| Purity | Pharmaceutical Grade | Industrial Grade |
| Direct Product Contact | Yes | No |
| Sterilization Use | Yes | Limited |
| Chemical Contamination | None | Possible |
| GMP Compliance | Yes | No |
| Pyrogen Free | Yes | No |
Pure Steam Generator vs Multi Column Distillation Plant
| Parameter | Pure Steam Generator | Multi Column Distillation Plant |
|---|---|---|
| Output | Pure Steam | Water for Injection |
| Main Purpose | Sterilization | WFI Production |
| Application | SIP & Sterilization | Injectable Manufacturing |
| End Product | Sterile Steam | Sterile Water |
Most pharmaceutical facilities install both systems together.
GMP Requirements for Pure Steam Generators
A pharmaceutical-grade PSG should comply with:
- WHO GMP
- USFDA Guidelines
- EU GMP
- ISPE Guidelines
- ASME Standards
Important features include:
- SS316L contact parts
- Sanitary piping
- Electropolished surfaces
- Automated control systems
- Validation documentation
Common Capacities Available
Typical capacities include:
- 50 Kg/Hr
- 100 Kg/Hr
- 200 Kg/Hr
- 300 Kg/Hr
- 500 Kg/Hr
- 1000 Kg/Hr
- 2000 Kg/Hr
- Customized capacities
How to Choose the Right Pure Steam Generator?
Steam Demand Analysis
Calculate the total steam requirement of:
- Autoclaves
- SIP Systems
- Sterile Equipment
Material of Construction
Choose SS316L for all product contact parts.
Automation Features
Look for:
- PLC Controls
- HMI Interface
- SCADA Integration
- Data Logging
Validation Support
Ensure availability of:
- DQ
- IQ
- OQ
- PQ Documentation
Why Choose Mediclave Industries for Pure Steam Generators?
At Mediclave Industries Private Limited, we manufacture advanced pharmaceutical utility systems designed for sterile manufacturing environments.
Our Pure Steam Generators offer:
✔ Pharmaceutical-grade steam quality
✔ GMP-compliant design
✔ Advanced separator technology
✔ Energy-efficient operation
✔ PLC-based automation
✔ Customized capacities
✔ Complete validation support
✔ Reliable after-sales service
We provide complete pharmaceutical utility solutions for pharmaceutical, biotechnology, vaccine, and healthcare industries.
Frequently Asked Questions (FAQs)
What is a Pure Steam Generator?
A Pure Steam Generator is a pharmaceutical utility system used to generate sterile, pyrogen-free steam for sterilization processes.
What is pure steam used for?
Pure steam is used for SIP systems, autoclaves, tanks, pipelines, and sterile pharmaceutical equipment.
Is pure steam different from plant steam?
Yes. Pure steam is pharmaceutical grade and free from contaminants, while plant steam is industrial grade.
What water is used in a Pure Steam Generator?
Typically Purified Water (PW) or Water for Injection (WFI) is used.
Is a Pure Steam Generator GMP compliant?
Yes. Pharmaceutical-grade Pure Steam Generators are designed according to WHO GMP, USFDA, EU GMP, and ISPE standards.
Conclusion
A Pure Steam Generator is a vital pharmaceutical utility system that ensures reliable sterilization and contamination-free manufacturing. By producing sterile, pyrogen-free steam, it supports SIP processes, autoclaves, sterile production lines, and pharmaceutical equipment sterilization. Investing in a GMP-compliant Pure Steam Generator improves product safety, regulatory compliance, and manufacturing efficiency.
