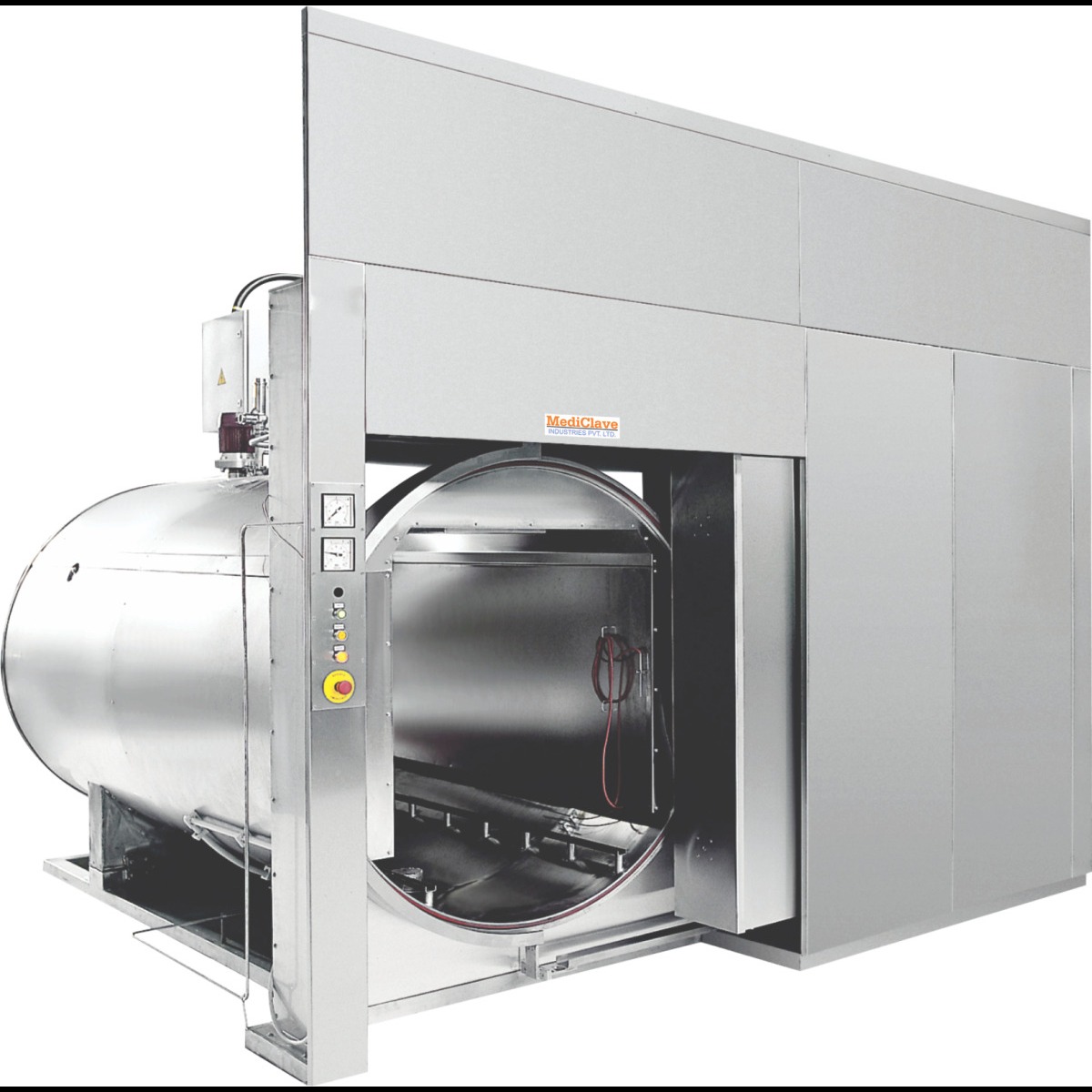

Super Heated Water Shower Sterilizer: Complete Guide for Pharmaceutical Terminal Sterilization
In the pharmaceutical industry, ensuring product sterility is one of the most critical requirements for patient safety and regulatory compliance. Injectable products, IV fluids, ampoules, vials, eye drops, prefilled syringes, and other sterile products must undergo a validated sterilization process before reaching the market.
A Super Heated Water Shower Sterilizer is one of the most advanced and reliable sterilization systems used for terminal sterilization of pharmaceutical products. The system utilizes superheated water circulated through specially designed spray nozzles to achieve uniform temperature distribution while protecting sensitive products and packaging.
This technology is widely used in pharmaceutical manufacturing facilities where precise temperature control and product integrity are essential.
What is a Super Heated Water Shower Sterilizer?
A Super Heated Water Shower Sterilizer is a pharmaceutical sterilization system that uses recirculated superheated water sprayed over products to achieve effective terminal sterilization.
Unlike conventional steam sterilization systems, water shower sterilizers provide:
- Uniform heat distribution
- Reduced thermal shock
- Controlled pressure management
- Excellent product protection
- Consistent sterilization performance
The system is particularly suitable for sterilizing heat-sensitive liquid products packaged in sealed containers.
Why is Terminal Sterilization Important?
Terminal sterilization is performed after a product has been filled and sealed in its final container.
This process ensures destruction of:
- Bacteria
- Microorganisms
- Fungi
- Viruses
- Spores
Benefits include:
✅ Higher sterility assurance level (SAL)
✅ Improved patient safety
✅ Regulatory compliance
✅ Longer product shelf life
✅ Reduced contamination risk
Because sterilization occurs after packaging, the risk of post-processing contamination is significantly reduced.
Working Principle of a Super Heated Water Shower Sterilizer
The sterilization cycle follows a carefully controlled sequence.
Step 1: Product Loading
Products are loaded into the sterilization chamber.
Common products include:
- Glass vials
- Plastic bottles
- IV fluid bottles
- Ampoules
- Infusion bags
- Prefilled syringes
Step 2: Chamber Preheating
The chamber temperature is gradually increased to prevent thermal stress on containers.
Benefits:
- Product protection
- Packaging safety
- Reduced breakage risk
Step 3: Superheated Water Generation
Water is heated using steam through a heat exchanger.
The water temperature is raised above normal boiling conditions while maintaining controlled chamber pressure.
This creates superheated water suitable for sterilization.
Step 4: Water Shower Circulation
The superheated water is circulated continuously through spray nozzles located inside the chamber.
The water shower uniformly covers all products.
Advantages include:
- Excellent heat transfer
- Uniform temperature distribution
- Consistent sterilization
Step 5: Sterilization Holding Phase
Products are maintained at the required sterilization temperature for a validated holding time.
Typical sterilization temperatures:
- 115°C
- 121°C
- 124°C
- 126°C
- Customized cycles
The cycle is controlled using validated F₀ values.
Step 6: Cooling Phase
After sterilization, cooling water is introduced while chamber pressure remains controlled.
Benefits:
- Prevents container deformation
- Maintains product quality
- Reduces thermal shock
Step 7: Unloading
Once the cycle is complete, products are unloaded and transferred for inspection and packaging.
Major Components of a Super Heated Water Shower Sterilizer
1. Sterilization Chamber
The chamber is constructed from high-quality stainless steel and designed to withstand pressure and temperature variations.
Features include:
- SS316L interior
- High-pressure design
- GMP construction
- Long service life
2. Water Circulation System
The circulation system continuously recirculates heated water throughout the sterilization cycle.
Benefits:
- Uniform heating
- Energy efficiency
- Consistent process control
3. Spray Nozzle System
Specially engineered nozzles provide complete product coverage.
Functions:
- Uniform water distribution
- Enhanced heat transfer
- Consistent sterilization results
4. Heat Exchanger
The heat exchanger transfers energy from steam to circulating water.
Advantages:
- Efficient heating
- Reduced energy consumption
- Precise temperature control
5. Pressure Control System
Pressure is controlled throughout the cycle to protect product containers.
This is especially important for:
- Plastic bottles
- Infusion bags
- Flexible packaging
6. PLC Automation System
Modern sterilizers utilize:
- PLC controls
- HMI touchscreens
- SCADA integration
- Batch recording
- Audit trails
Applications of Super Heated Water Shower Sterilizers
Pharmaceutical Industry
Used for sterilizing:
- Injectable products
- IV fluids
- Large volume parenterals (LVP)
- Small volume parenterals (SVP)
- Eye drops
- Vaccines
Biotechnology Industry
Applications include:
- Biopharmaceutical products
- Research formulations
- Sterile biological preparations
Healthcare Manufacturing
Suitable for:
- Medical solutions
- Sterile healthcare products
- Diagnostic liquids
Veterinary Pharmaceuticals
Used for sterilization of:
- Injectable veterinary medicines
- Sterile animal healthcare products
Products Commonly Sterilized
A Super Heated Water Shower Sterilizer is ideal for:
Glass Containers
- Ampoules
- Vials
- Bottles
Plastic Containers
- BFS bottles
- Plastic vials
- Pharmaceutical bottles
Flexible Packaging
- IV bags
- Infusion pouches
- Medical solution bags
Specialty Products
- Eye drops
- Injectable solutions
- Nutritional products
Advantages of a Super Heated Water Shower Sterilizer
Excellent Temperature Uniformity
Water provides superior heat transfer compared to air.
This results in:
- Consistent sterilization
- Improved product quality
Reduced Container Damage
Controlled pressure prevents:
- Bottle deformation
- Container collapse
- Packaging failure
High Sterility Assurance
Provides validated terminal sterilization for pharmaceutical products.
Suitable for Heat-Sensitive Products
Gentle heating minimizes product degradation.
GMP Compliance
Designed according to pharmaceutical regulatory standards.
Energy Efficient Operation
Water recirculation reduces utility consumption.
Automated Batch Control
Ensures process repeatability and validation compliance.
Difference Between Water Shower Sterilizer and Steam Sterilizer
| Parameter | Water Shower Sterilizer | Steam Sterilizer |
|---|---|---|
| Heating Medium | Superheated Water | Saturated Steam |
| Product Protection | Excellent | Moderate |
| Temperature Uniformity | Very High | High |
| Plastic Container Compatibility | Excellent | Limited |
| IV Bag Sterilization | Ideal | Less Suitable |
| Thermal Shock Risk | Low | Higher |
Regulatory Compliance and Validation
A pharmaceutical Super Heated Water Shower Sterilizer should comply with:
- WHO GMP
- USFDA
- EU GMP
- Schedule M
- ISPE Guidelines
- 21 CFR Part 11
Validation requirements include:
- DQ (Design Qualification)
- IQ (Installation Qualification)
- OQ (Operational Qualification)
- PQ (Performance Qualification)
Key Features of Modern Water Shower Sterilizers
Advanced PLC Automation
Allows complete cycle monitoring and control.
SCADA Integration
Provides:
- Batch reports
- Audit trails
- Data storage
Recipe Management
Multiple sterilization programs can be stored and recalled.
Automatic Cycle Recording
Ensures GMP documentation compliance.
User-Friendly Interface
Simplifies operation and validation activities.
How to Choose the Right Super Heated Water Shower Sterilizer?
Before purchasing, consider:
Chamber Capacity
Common sizes include:
- 100 Liters
- 250 Liters
- 500 Liters
- 1000 Liters
- Custom Capacities
Product Type
Evaluate:
- Glass containers
- Plastic bottles
- IV bags
- Specialty packaging
Automation Level
Look for:
- PLC Control
- HMI Interface
- SCADA System
- Data Logging
Validation Support
Ensure availability of:
- DQ
- IQ
- OQ
- PQ Documentation
Why Choose Mediclave Industries for Super Heated Water Shower Sterilizers?
At Mediclave Industries Private Limited, we manufacture advanced pharmaceutical sterilization systems designed to meet the highest international standards.
Our Super Heated Water Shower Sterilizers offer:
✔ Uniform temperature distribution
✔ GMP-compliant design
✔ Advanced PLC automation
✔ Energy-efficient operation
✔ Customized chamber capacities
✔ Superior product protection
✔ Complete validation documentation
✔ Reliable after-sales support
We provide customized sterilization solutions for pharmaceutical, biotechnology, healthcare, and veterinary industries.
Frequently Asked Questions (FAQs)
What is a Super Heated Water Shower Sterilizer?
A Super Heated Water Shower Sterilizer is a pharmaceutical sterilization system that uses recirculated superheated water sprays to achieve terminal sterilization of packaged products.
What products can be sterilized in a Water Shower Sterilizer?
IV fluids, ampoules, vials, eye drops, infusion bags, injectable solutions, vaccines, and pharmaceutical liquid products.
Why is a Water Shower Sterilizer preferred for IV bags?
It provides controlled pressure and uniform heating, preventing deformation and packaging damage.
What is the sterilization temperature used in Water Shower Sterilizers?
Typical temperatures range from 115°C to 126°C depending on product requirements and validation protocols.
Is a Super Heated Water Shower Sterilizer GMP compliant?
Yes. Pharmaceutical-grade systems are designed according to WHO GMP, USFDA, EU GMP, and international validation standards.
Conclusion
A Super Heated Water Shower Sterilizer is one of the most effective solutions for terminal sterilization of pharmaceutical liquid products. Its ability to provide uniform heat distribution, controlled pressure, and superior product protection makes it ideal for sterilizing IV fluids, injectable solutions, ampoules, vials, and flexible packaging. With GMP-compliant construction, advanced automation, and validated sterilization performance, it remains a preferred choice for modern pharmaceutical manufacturing facilities.
