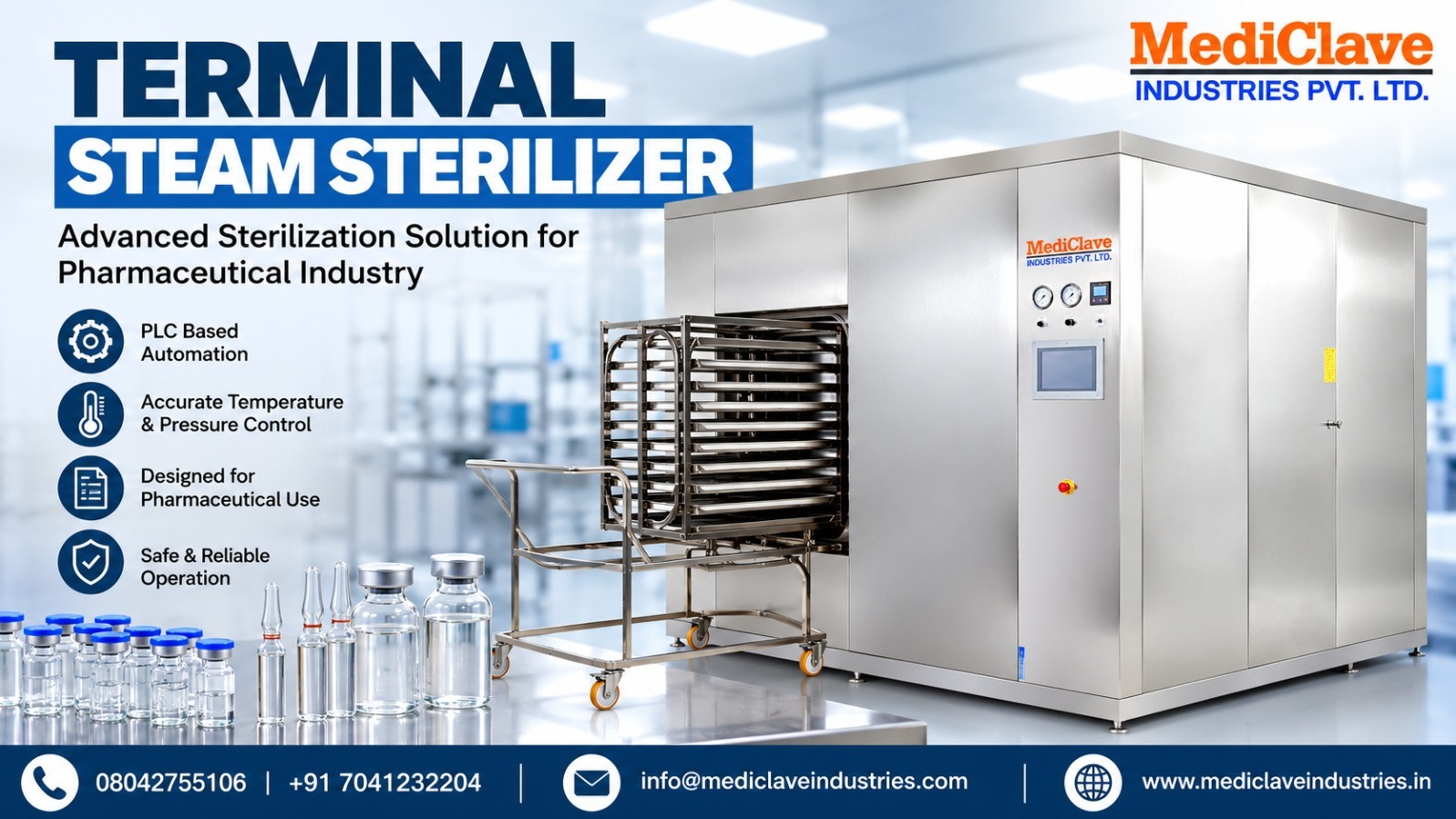

Terminal Steam Sterilizer Manufacturer in Mumbai

In the pharmaceutical industry, maintaining product sterility is essential for patient safety, regulatory compliance, and consistent product quality. A Terminal Steam Sterilizer plays an important role in sterilizing pharmaceutical products in their final sealed containers, helping manufacturers reduce microbial contamination risks before products reach the market.

Mediclave Industries Private Limited is a manufacturer and supplier of pharmaceutical sterilization equipment in India, offering Terminal Steam Sterilizer solutions for pharmaceutical manufacturing facilities, injectable production units, biotechnology industries, and other applications requiring validated sterilization processes.

Our focus is on delivering reliable sterilization equipment designed to support precise temperature control, consistent process performance, operational safety, and pharmaceutical production requirements.

What Is a Terminal Steam Sterilizer?

A Terminal Steam Sterilizer is specialized pharmaceutical sterilization equipment used to sterilize products after they have been filled and sealed in their final containers.

The process typically uses saturated steam or a validated steam-based sterilization cycle to achieve the required microbial lethality.

Terminal sterilization is particularly important in pharmaceutical manufacturing because it provides a high level of sterility assurance when the product and packaging are compatible with the selected process.

Terminal Steam Sterilizers are commonly used for:

· Injectable pharmaceutical products

· Large Volume Parenterals (LVP)

· Small Volume Parenterals (SVP)

· Sealed glass vials and ampoules

· Pharmaceutical solutions

· Heat-stable liquid medications

· Selected medical and healthcare products

The suitability of terminal steam sterilization depends on the formulation, container closure system, heat stability, and validated sterilization requirements.

How Does a Terminal Steam Sterilizer Work?

A Terminal Steam Sterilizer operates through a controlled sterilization cycle designed to expose products to specified conditions of temperature, pressure, and time.

The process generally involves the following stages.

1. Loading: Sealed pharmaceutical containers are arranged in suitable loading trays, racks, or trolleys to support consistent heat distribution.

2. Heating: Steam or a validated steam-based heating process increases the chamber and product temperatures toward the required sterilization conditions.

3. Sterilization Holding: The equipment maintains validated process conditions for the required duration to achieve the target microbial lethality.

4. Controlled Cooling: After the sterilization phase, products are cooled under controlled conditions. Certain liquid-filled containers may require counterpressure to minimize container damage.

5. Cycle Completion: The sterilizer completes the programmed cycle, and process data is reviewed according to the facility's approved procedures before product release.

Common reference sterilization temperatures include 121°C, although actual process parameters must be established through product-specific validation.

Key Features of Terminal Steam Sterilizer

Mediclave Industries focuses on pharmaceutical sterilization solutions designed around customer process requirements. Depending on the selected configuration, Terminal Steam Sterilizers may incorporate the following features.

1. Stainless Steel Construction

Pharmaceutical sterilization equipment commonly uses stainless steel construction, including SS 316L for suitable product-contact or critical internal surfaces, depending on the design requirements.

2. PLC-Based Automation

A PLC-based control system can provide automated cycle execution, process monitoring, and control of critical sterilization parameters.

3. Accurate Temperature and Pressure Control

Properly designed instrumentation and control systems help maintain required process conditions throughout the sterilization cycle.

4. User-Friendly HMI

An HMI interface can enable operators to select validated cycles, monitor process parameters, review alarms, and access operating information.

5. Safety Interlocking System

Door interlocks and other safety provisions help prevent unsafe operation, including opening the chamber under hazardous conditions.

6. Data Recording and Documentation

Depending on the configuration, the system can support recording of temperature, pressure, cycle duration, alarms, and other process information needed for batch documentation.

7. Customized Chamber Sizes

Terminal Steam Sterilizers can be engineered for different production capacities, loading configurations, and pharmaceutical packaging formats.

8. GMP-Oriented Design

Equipment can be designed to support pharmaceutical GMP expectations, including cleanable construction, appropriate instrumentation, documentation, and qualification requirements.

Applications of Terminal Steam Sterilizer

Pharmaceutical Manufacturing Industry

Terminal Steam Sterilizers are used in pharmaceutical production facilities where sealed, heat-stable products require a validated sterilization process.

Injectable Manufacturing Plants

Suitable injectable solutions in sealed containers may undergo terminal steam sterilization to achieve the required sterility assurance.

Large Volume Parenteral Manufacturing

LVP production facilities use validated terminal sterilization processes for compatible infusion solutions and packaging systems.

Small Volume Parenteral Manufacturing

SVP manufacturers may use terminal steam sterilization for compatible sealed vials, ampoules, and other containers.

Biotechnology and Healthcare Industries

Selected heat-stable biotechnology and healthcare products can be processed using appropriate validated steam sterilization methods.

Technical Specifications of Terminal Steam Sterilizer

The following table describes typical specification options. These are general reference values and not confirmed specifications for a particular Mediclave model.

Parameter	Typical specification / option
Equipment Name	Terminal Steam Sterilizer
Chamber Material	SS 316L / SS 304, as specified
Operating Temperature	Commonly 121°C; cycle-dependent
Sterilization Medium	Saturated steam / validated steam-based process
Control System	PLC with HMI
Door Configuration	Single Door / Double Door
Chamber Capacity	Customized as per requirement
Data Recording	Digital / Electronic, optional
Safety System	Door interlocks, alarms, pressure protection
Application	Pharmaceutical terminal sterilization

Final technical specifications depend on the customer's URS, product characteristics, regulatory requirements, and equipment design.

Benefits of Using a Terminal Steam Sterilizer

High Sterility Assurance: A properly developed and validated terminal sterilization process can achieve the required sterility assurance level, commonly targeting an SAL of 10⁻⁶ for applicable pharmaceutical products.

Reduced Contamination Risk: Sterilizing suitable products in their final sealed containers reduces the risk of contamination associated with subsequent handling.

Consistent Processing: Automated control and validated cycles help manufacturers achieve repeatable sterilization conditions.

Production Efficiency: Appropriate chamber sizing, loading arrangements, and cycle design can support efficient pharmaceutical batch processing.

Process Documentation: Electronic monitoring and recording options help facilities maintain sterilization records and support quality assurance activities.

Regulatory Compliance Support: Suitable equipment design, qualification, and process validation help manufacturers meet applicable pharmaceutical regulatory expectations.

Terminal Steam Sterilizer vs. Conventional Steam Sterilizer

Although both systems use steam-based sterilization principles, their intended applications may differ.

Terminal Steam Sterilizer	Conventional Steam Sterilizer
Sterilizes suitable products in final sealed containers	Commonly sterilizes equipment, components, instruments, or porous loads
Often requires product-specific heating and cooling control	Cycle design depends on load type
May require counterpressure during cooling	Counterpressure may not be required
Designed around pharmaceutical product and packaging compatibility	Used across pharmaceutical, laboratory, and hospital applications
Requires product-specific sterilization validation	Requires validation appropriate to the intended load

Why Choose Mediclave Industries for Terminal Steam Sterilizer?

Selecting the right pharmaceutical sterilization equipment manufacturer is an important decision for any production facility.

Mediclave Industries Private Limited provides sterilization and pharmaceutical processing equipment solutions with a focus on customer requirements, equipment functionality, and dependable manufacturing.

Our approach emphasizes:

· Customized sterilization equipment solutions

· Pharmaceutical industry-oriented equipment design

· Automation and process control options

· Stainless steel equipment construction

· Operator safety and ease of operation

· Technical consultation for equipment selection

· Solutions for pharmaceutical manufacturing facilities

Whether you are planning a new pharmaceutical manufacturing plant or upgrading an existing sterilization system, Mediclave Industries can discuss equipment configurations suited to your production requirements.

Explore our pharmaceutical equipment and sterilization solutions through our official website:

Mediclave Industries – Pharmaceutical Equipment Manufacturer

You can also explore our broader range of pharmaceutical sterilization and processing equipment and contact Mediclave Industries for equipment inquiries.

Important Factors When Selecting a Terminal Steam Sterilizer

Before purchasing a Terminal Steam Sterilizer, pharmaceutical manufacturers should evaluate product compatibility, batch capacity, container types, sterilization cycle requirements, and available utilities.

Equipment selection should also consider temperature distribution, heat penetration, cooling requirements, control-system functionality, and the documentation needed for qualification and validation.

Depending on the application, qualification activities may include Design Qualification (DQ), Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ).

Choosing equipment based on a detailed User Requirement Specification (URS) helps ensure the sterilizer is appropriate for the intended pharmaceutical manufacturing process.

Frequently Asked Questions (FAQs)

Q1. What is the main purpose of a Terminal Steam Sterilizer?

A Terminal Steam Sterilizer is used to sterilize compatible pharmaceutical products after they have been filled and sealed in their final containers.

Q2. What temperature is used in terminal steam sterilization?

121°C is a commonly used reference temperature. However, the actual temperature and exposure time depend on product compatibility and validated process requirements.

Q3. Can Terminal Steam Sterilizers be used for injectable products?

Yes. They can be used for injectable formulations that are compatible with the selected terminal sterilization process and container system.

Q4. What is the difference between terminal sterilization and aseptic processing?

Terminal sterilization applies a validated sterilization process to products in their final containers. Aseptic processing involves separately sterilizing components and product streams where applicable, then filling and sealing under controlled aseptic conditions.

Q5. Can Mediclave Industries provide customized Terminal Steam Sterilizers?

Mediclave Industries can discuss customized sterilization equipment requirements, including chamber capacity, control options, loading arrangements, and application-specific configurations.

Conclusion

A Terminal Steam Sterilizer is an important part of pharmaceutical manufacturing for products that can safely undergo sterilization in their final sealed containers. With appropriate equipment design, validated sterilization cycles, and reliable process control, manufacturers can support product sterility, batch consistency, and regulatory compliance.

Mediclave Industries Private Limited offers pharmaceutical sterilization equipment solutions for manufacturers seeking dependable equipment tailored to their production needs.

For pharmaceutical companies looking for a Terminal Steam Sterilizer Manufacturer in India, Mediclave Industries is available to discuss equipment requirements and provide quotation information.
